Gipsy 5-50MHz Coil Dipole Antenna

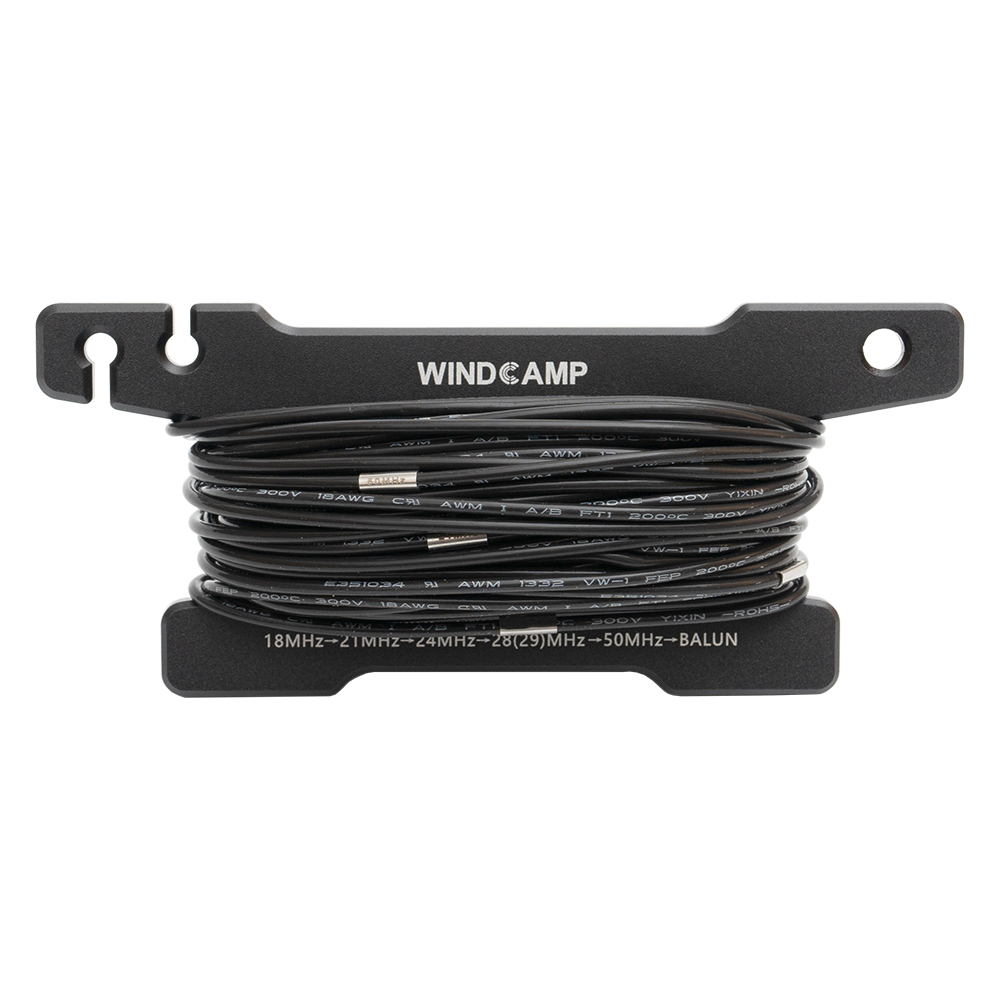

This is a full-sized half-wavelength horizontal dipole antenna specially designed for field day, and can be erected in horizontal, inverse V, cable-stayed or even vertical ways. The resonant frequency can be flexibly changed in the range of 5-50MHz by rolling the irradiator on the reel. In addition, 9 amateur radio bands 5/7/10/14/18/21/24/28(29)/50MHz are marked as resonance points on the irradiator to facilitate fast and accurate switching of working frequencies.



Consumption Tips

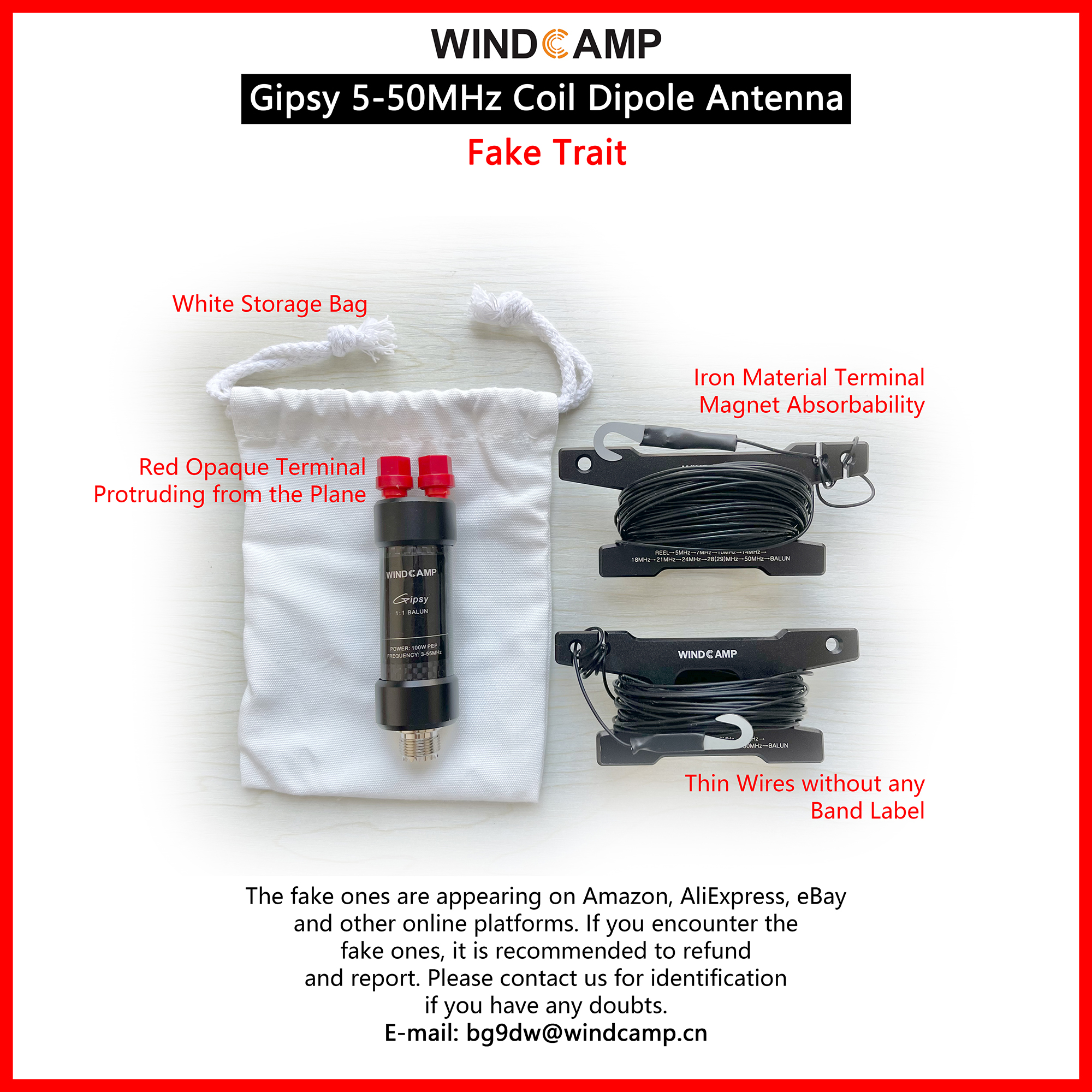

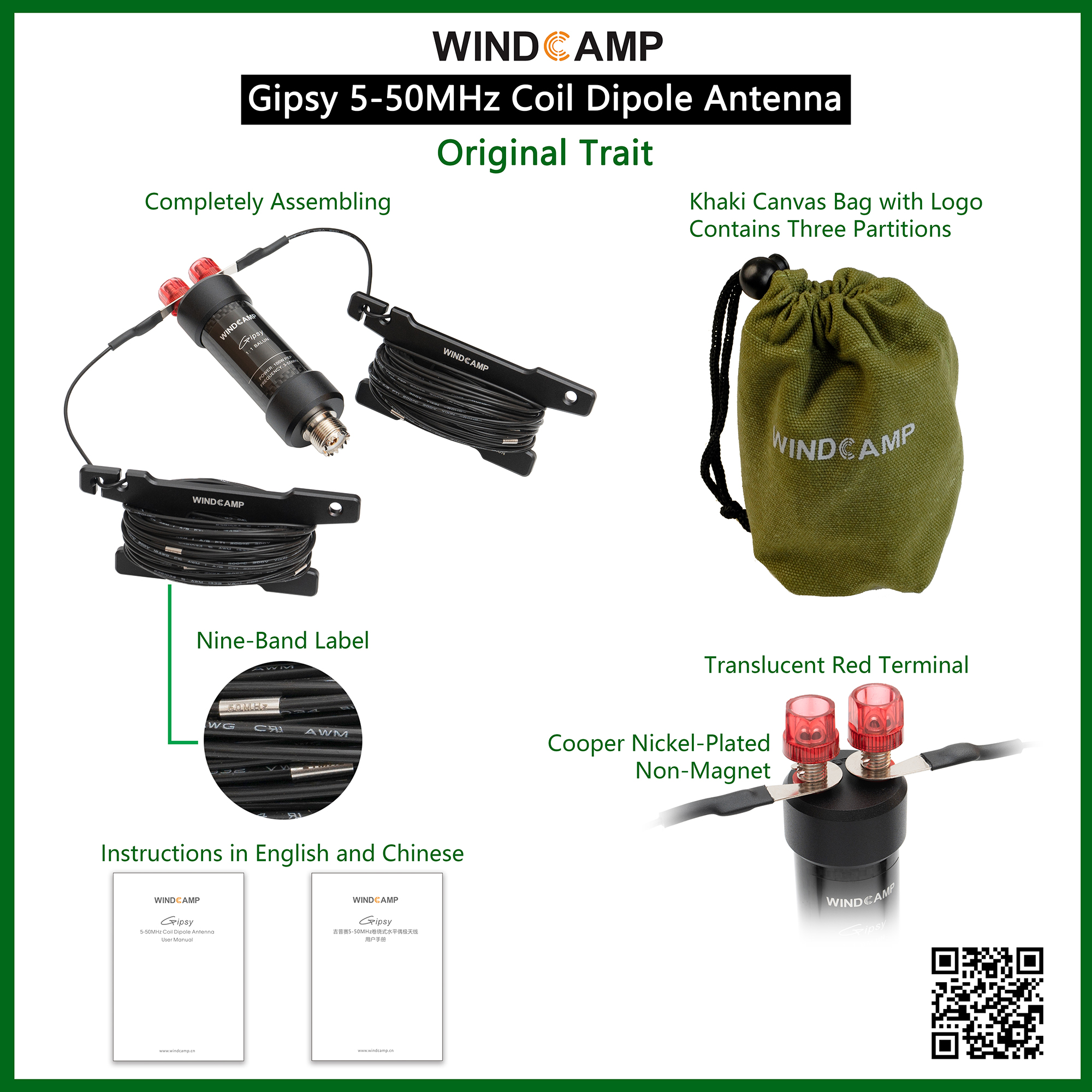

The product pictures displayed on WINDCAMP's official website are the latest product appearance on selling. Who does not match the pictures on the official website are all fake goods.



Specifications
Frequency: 5-50MHz
SWR: ≤1.5
Impedance: 50 Ω
Power: 100W PEP
Outlet: SL-16
Work Length: 50MHz - 2.1m, 28(29)MHz - 4.2m, 24MHz - 5m, 21MHz - 6.2m, 18MHz - 7.4m, 14MHz - 9.4m, 10MHz - 13.4m, 7MHz - 19.4m, 5MHz - 25.8m (length with extended left and right arms)
Package Size: 75×75×130(WDH, mm)
Net Weight: 0.6Kg



Packing List

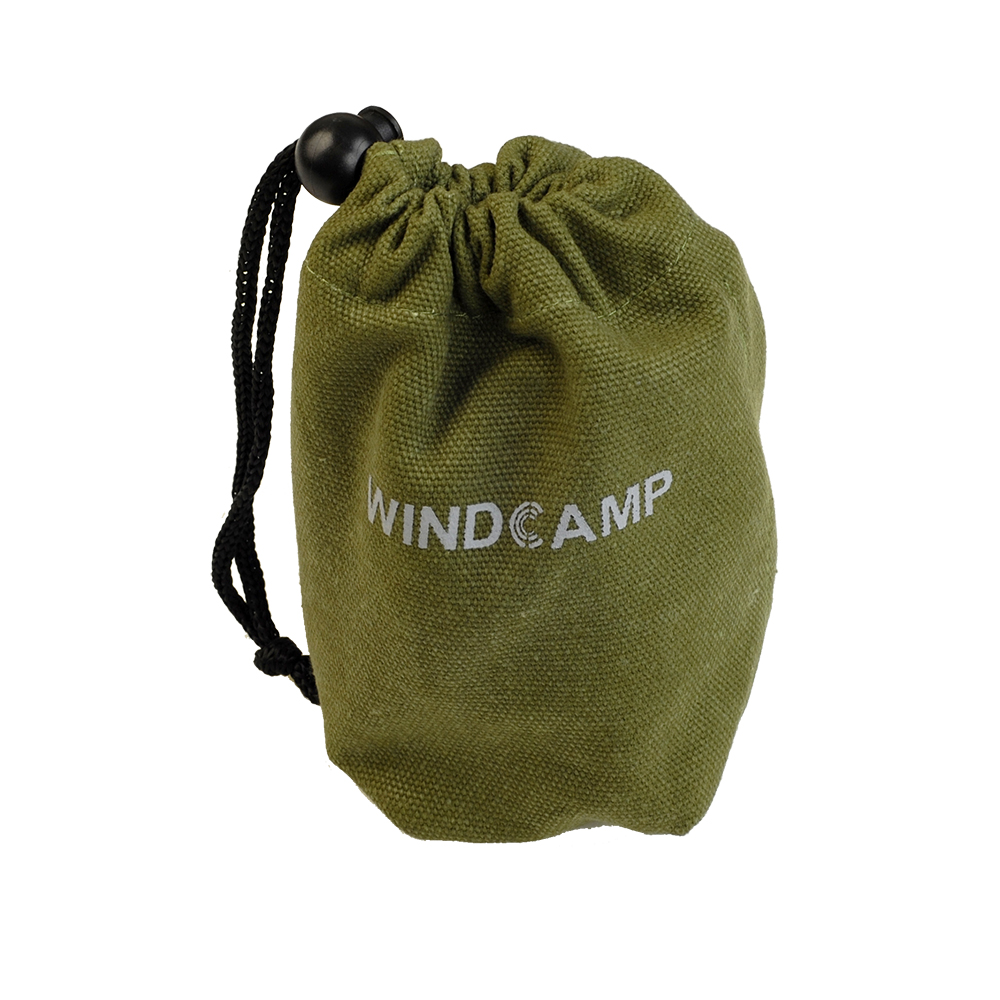

Gipsy Balun × 1, Oscillator (including reels) × 2, Balun Hanging Cord × 1, Canvas Bag × 1, User Manual × 1
